Tape & Reel Packaging

TAPE & REEL PACKAGING

Taped components typically have trimmed leads. The data sheet “bulk” lead length dimensions therefore do not apply. For RCD’s standard tape & reel packaging, specify code “T”. For custom T&R, select from the options below (TX, TF, TPN, etc). For ammo-pack (tape & boxed), specify code “A” instead of “T” (A, AX, AF, APN, etc). All dimensions in mm.

HORIZONTAL TAPING (per EIA RS296D)

The component pitch depends on body diameter, tape spacing depends on body length. RCD’s standard spacing provides a 20mm min lead length.

Specify packaging code “T” for RCD’s standard tape spacing and pitch. For custom taping, specify code:

TX for 52.4mm spacing & 5mm pitch
TF for 52.4mm spacing & 10mm pitch
TU for 63.5mm spacing & 5mm pitch
TT for 63.5mm spacing & 10mm pitch
TJ for 73mm spacing & 5mm pitch
TN for 73mm spacing & 10mm pitch

Various other taping options available.

SIP NETWORK TAPING

Packaging code = A3 (Ammo pack)

SIP’s with 4 or 5 pins have pins 2-4 taped
SIP’s with 6 or 7 pins have pins 3-5 taped
SPI’s with 8, 9 or 10 pins have pins 4-6 taped

RADIAL LEAD AND VERTICAL TAPING

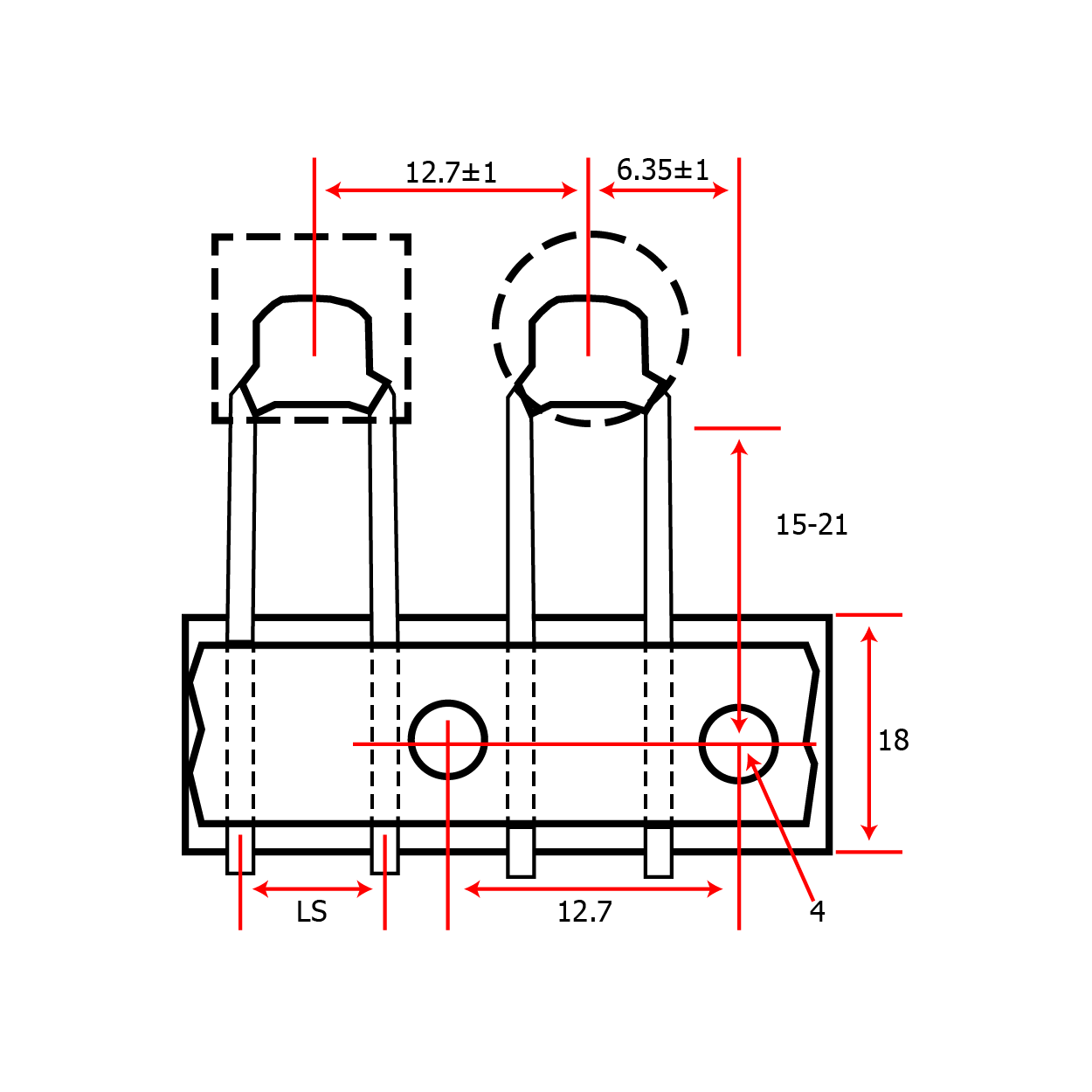

Standard Radial Taping
Resistors & Caps (Code T)

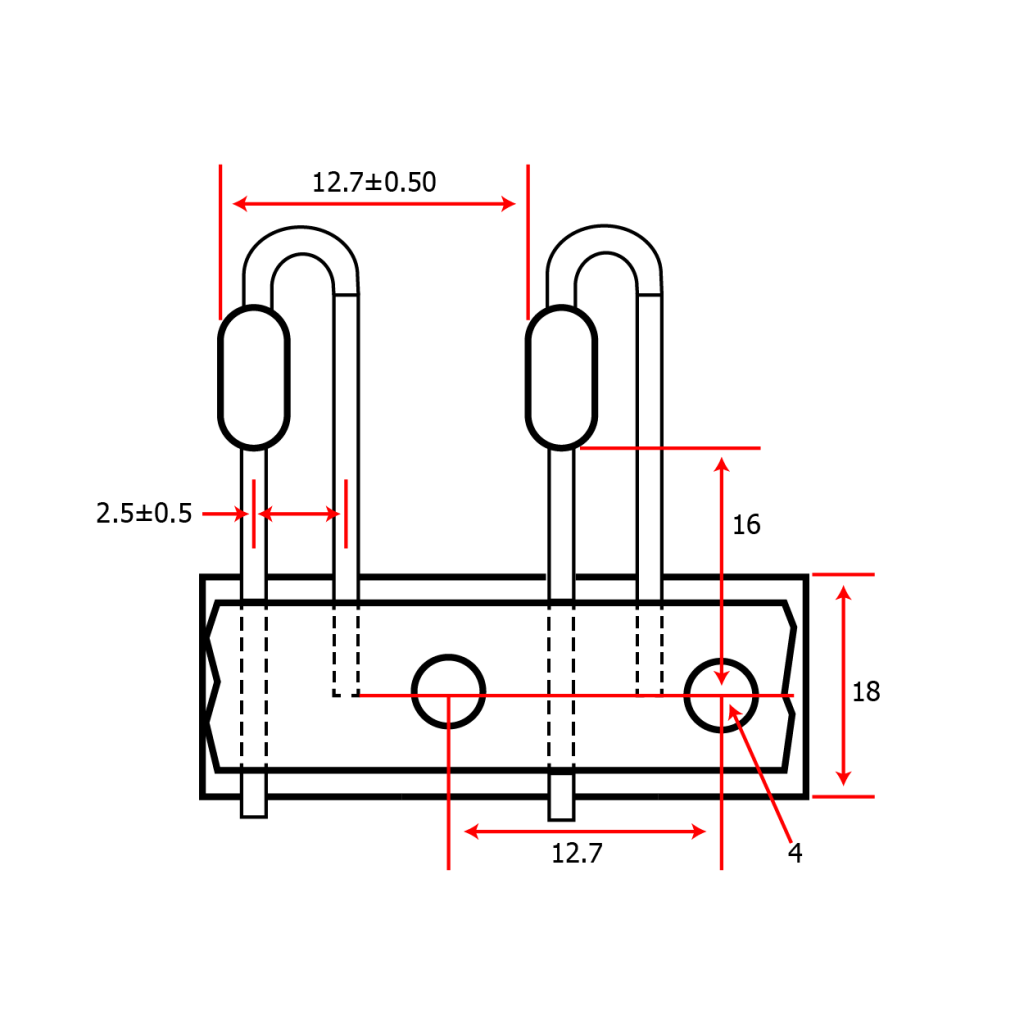

High Density (Code THD)
1/8 & mini – 1/4 body sizes

Panasert (Code TPN)
1/4W ~3W body sizes

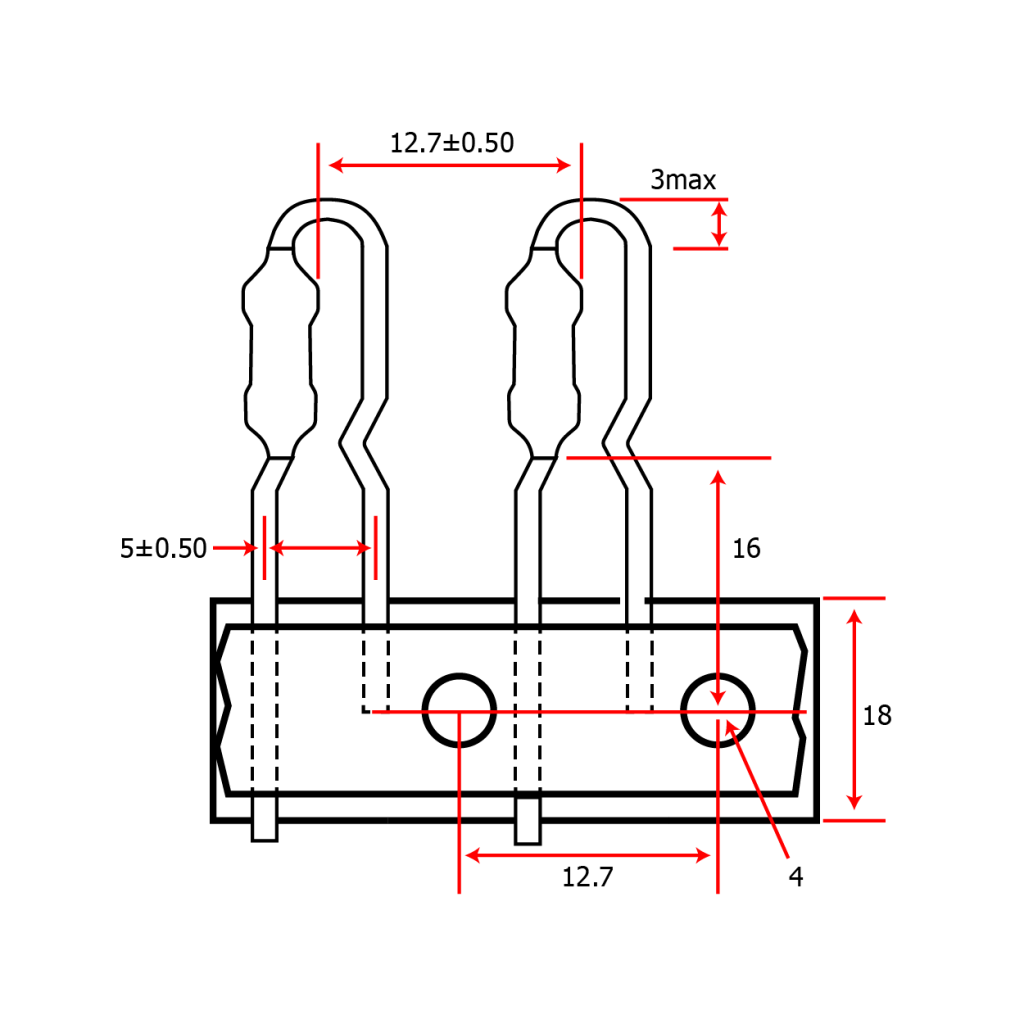

Avisert (Code TAV)
1/4 ~1/2W body sizes

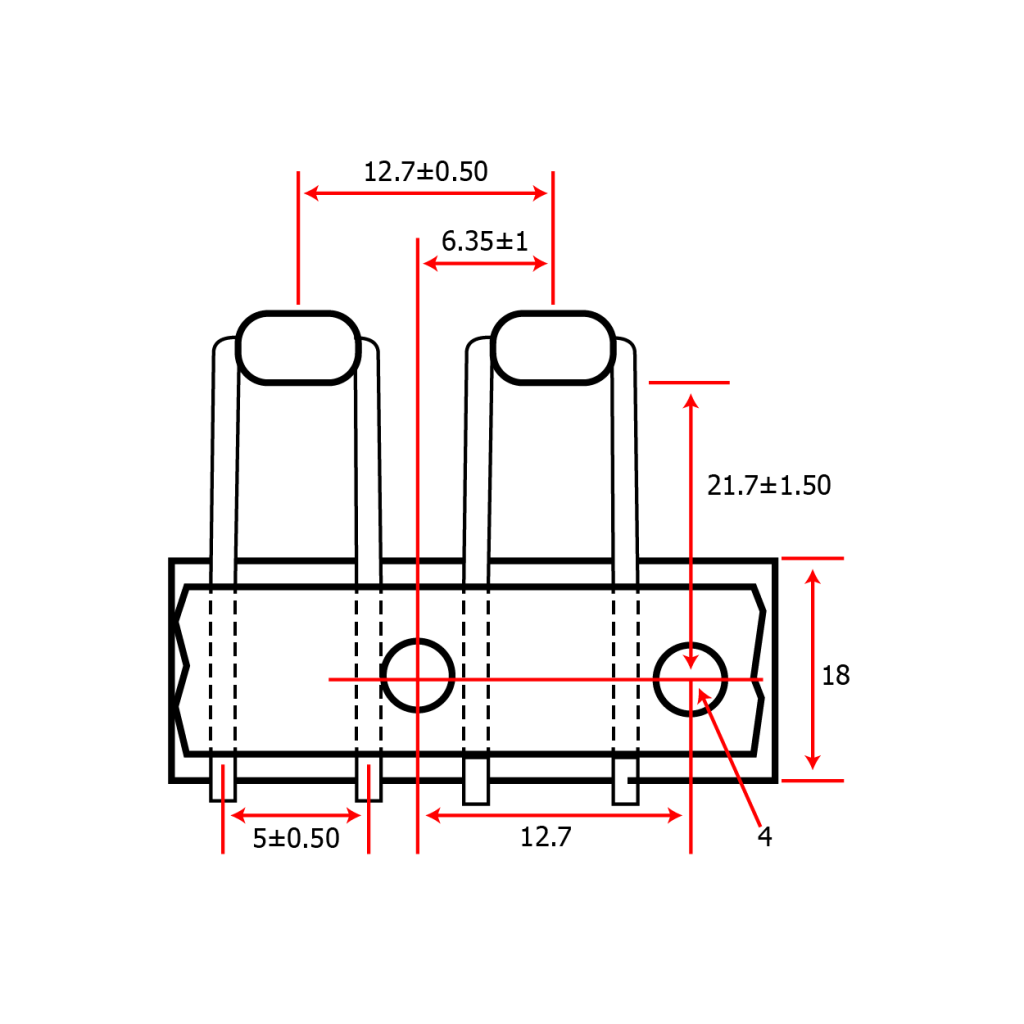

Horiz. Preform (Code THP)
1/8 & mini – 1/4W body sizes

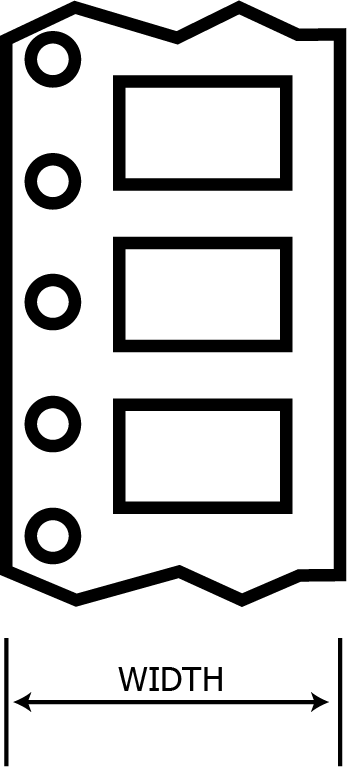

EIA 481 SURFACE MOUNT TAPING: Code T

(if heat sealed cover tape is required instead of pressure sensitive adhesive, specify code TH)

PART	TYP QTY	WIDTH (mm)
BC630G	*	*
BC632G	1000	24
BC633G	1000	24
BLU0201	10000	8
BLU0402	10000	8
BLU0603	5000	8
BLU0805	5000	8
BLU1206	5000	8
BLU1210	5000	8
BLU2010	4000	12
BLU2512	4000	12
CE0201	10000	8
CE0402	10000	8
CE0603	4000	8
CE0805	4000	8
CE1206	4000	8
CE1210	2000 2500	8
CE1812	1000	12
CE2225	1000	12
CE3035	*	*
CI0402	4000	8
CI0603	3000	8
CI0805	2000	8
CI1008	2000	8
CN0606	5000	8
CN0804	5000	8
CN1206	5000	8
CN1608	4000	12
CN2012	4000	12
CN2512	4000	12
FC0402	10000	8
FC0603	5000	8
FC0805	5000	8
FC1206	5000	8
FC1210	5000	8
FC2010	4000	12
FC2512	4000	12
FLP0805	5000	8
FLP1206	5000	8
HI330	500 1000	24
HI330S	500 1000	24
HI500	250	32
HI500S	250	32
HP7GW	*	*
HR0402	10000	8
HR0503	*	*
HR0603	5000	8
HR0805	5000	8
HR1206	5000	8
HR1210	5000	8

PART	TYP QTY	WIDTH (mm)
HR2010	4000	12
HR2512	4000	12
MBW1/4F	2500	12
MBW1/2F	2000	16
MBW1/2FS	2500	12
MBW1FS	2000	16
MBW2F	1500	16
MBW3F	*	*
MC0201	10000	8
MC0402	10000	8
MC0603	5000	8
MC0805	5000	8
MC1206	5000	8
MC1210	5000	8
MC2010	4000	12
MC2040	5000	16
MC2512	4000	12
MCF10	3000	8
MCF12	3000	8
MCF22	3000	8
MCF25	2000	12
MCF25S	2000	12
MCI1008	2000	8
MCI1210	2000	8
MCI1812	500	12
MCT0402	10000	8
MCT0505	*	*
MCT0603	5000	8
MCT0805	5000	8
MCT1005	*	*
MCT1206	5000	8
MCT1210	5000	8
MCT1505	4000	8
MCT2010	4000	12
MCT2512	4000	12
MGP45	3000	8
MGP50	3000	8
MGP50S	3000	8
MGP55	2000	12
MGP55S	2000	12
MHI0201	10000	8
MHI0402	10000	8
MHI0603	4000	8
MHI0805	4000	8
ML0402	10000	8
ML0603	5000	8
ML0805	5000	8
ML1206	5000	8
ML2010	4000	12
ML2512	4000	12
MLB2512	2000	12

PART	TYP QTY	WIDTH (mm)
MLI0603	4000	8
MLI0805	4000	8
MLI1008	2000	8
MLI1206	2500	8
MLP12	3000	8
MLP25	2000	12
MP126G	500	24
MP220G	*	*
MP220GB	*	*
MPD220	500	24
MPF1	2500	12
MPF2	1500	24
MPF2S	2000	16
MPF3	*	*
MPF3S	1500	24
MSI1210	2000	8
MSI1812	500	12
MW1/2	2000	12
MW1	2000	12
MW2	500 2000	16
MW25	1500	24
MW3	*	*
MW35	1500	24
MW5	*	*
MWM1/2	2500 5000	12
MWM1/2L	2500 5000	12
MWM1	2500	12
MWM1L	3000	12
MWM2	1000	24
MWM27	1000	24
MWM2L	2000	24
MWM2LS	2000	12
MWM2S	2000	16
MWM3	750	44
MWM3S	800	32
MWM5	750	44
PC451G	*	*
PCN1/4M	1000	24
PCN1/2M	800	32
PCN1M	750	44
PIC1	2000	12
PIC2	1500	16
PIC3	1000	16
PIC4	1000	16
PIC5	1000	24
PIC6	500	24
PIC7	500	24
PRM1/8	2500 5000	12
PRM1/4	2500	12

PART	TYP QTY	WIDTH (mm)
PRM1/2	1000	24
PRM1	750	44
SF1	1500	16
SFG2	700	44
SMA1405	1000	24
SMN0404	10000	8
SMN0606	5000	8
SMN0804	10000	8
SMN1206	5000	8
SMN1506	5000	8
SMN16	2000	24
SMN2010	4000	12
SMN2012	4000	12
SMNN1206	5000	8
SMP01S	*	*
SMP1410	1000	24
SMP1610	1000	24
SRH1020	*	*
SRH1206	5000	8
SRH2512	4000	12
SRH4020S	1000	16
SRH5020	1000	24
SRH7020	*	*
TSA	2000	8
TSB	2000	8
TSC	500	12
TSD	500	12
TSE	400	12
TSS	2500	8
VS1GW	*	*
VS15GW	1000	24
VS16GW	1000	24
VS2GW	*	*
Z1206	1000	8
ZC0201	10000	8
ZC0402	10000	8
ZC0603	5000	8
ZC0805	5000	8
ZC1206	5000	8
ZC1210	4000	8
ZC2010	4000	12
ZC2512	4000	12
ZCF10	3000	8
ZCF12	3000	8
ZCF22	3000	8
ZCF25	2000	12
ZCF25S	2000	12
ZZ SMALL	800	32
ZZ MED	750	44
ZZ LARGE	*	*

NOTES:

Quantity of CE, MHI, MLI, HI, PIC, and MLB depend on chip thickness.
Quantities listed are typical and subject to change. Notify RCD if specific quantity/reel is required, or any other special taping/labeling requirements.
Tape & Reel packaging is standard for many items and therefore RCD reserves the right to supply parts on tape, even when “bulk packaging” is ordered.

* Consult Factory
